KaputechnikaZsan�rok |

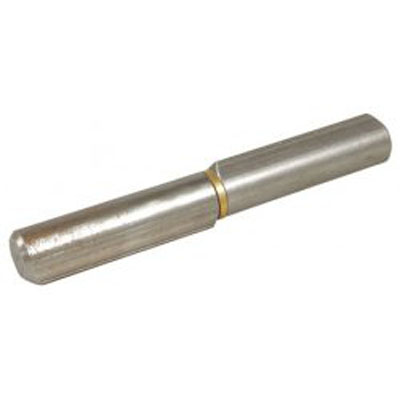

Csepp profil, fix tengely
414/A - ac�l csap,
rezezett gy�r�
414/O - r�z
csap �s gy�r�

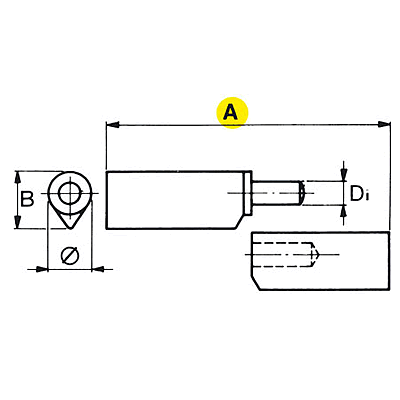

A mm |
40 | 60 | 80 | 100 | 120 |
�tm�r� mm |
10 | 10 | 12 | 14 | 16 |
| B mm | 12 | 12 | 14 | 16 | 18 |
| D mm | 6 | 6 | 7 | 8 | 9 |
| 414/A | 414040A | 414060A | 414080A | 414100A | 414120A |
| 414/O | 414040O | 414060O | 414080O | 414100O | 414120O |
A mm |
140 | 160 | 180 | 200 |
�tm�r� mm |
16 | 20 | 22 | 22 |
| B mm | 18 | 23 | 25 | 25 |
| D mm | 9 | 12 | 14 | 14 |
| 414/A | 414140A | 414160A | 414180A | 414200A |
| 414/O | 414140O | 414160O | 414180O | 414200O |
